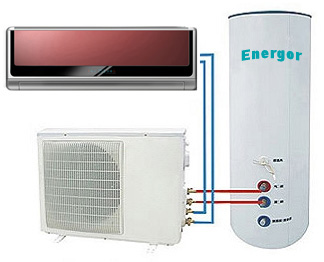

Air Source Heat Pump--- Air Conditioner & Water Heating

Features:

★ Safty,the electricity is completely separated from water,without any poisonous gas,liquid or trash letting while running.　
★ Save energy and protect environment,dual-use as air conditioner and water heater,the heat efficiency can up to 800%.　
★ Supply water anytime,and not be affected by geographical and weather changing.
★ Supply strong multi-point hot water,comfortable to use at anytime in need.
★ Intelligent control,the water temperature can be adjusted as needed and controlled by micro-computer automatiically.
★ Long life,the life can be 15～18 years.



Specification

Item No.:
Unit
HA-2001
HA-2002
HA-2003
HA-2004
HA-2005
Heat Pump Outdoor Unit 　
　
　
　
　
　
Rating Water Heating Capacity
KW
3.8
5
7.2
9.6
12.8
Rating AC Heating Capacity
KW
2.6
3.3
5.2
6.7
8.5
Rating AC Cooling Capacity
KW
2.5
3.2
5.1
6.5
8.2
Input Power
KW
0.98
1.25
2
2.4
3.3
Running Current
A
4.5
5.8
9.5
11.5
16
Power Supply
V/Ph/Hz
220/1/50
220/1/50
220/1/50
220/1/50
220/1/50
Hot Water Offer(△T=40℃)
L/h
80
100
165
200
276
Rating Hot Water Temp.
℃
55
55
55
55
55
Max Hot Water Temp.
℃
60
60
60
60
60
Noise
dB(A)
47
48
50
53
55
Unit Dimension
mm
840×320×545
840×320×545
840×320×545
890×350×700
850×295×870
Package Dimension
mm
930×330×600
930×330×600
930×330×600
995×405×765
1030×440×960
Weight (Gross/Net)
kg
34/32
36/34
42/40
56/54
78/75
Air Conditioner 　
　
　
　
　
　
Air Flow
m3/h
480
540
700
900
1150
Noise
dB(A)
36
38
41
44
46
Size
mm
785×200×270
785×200×270
920×205×275
1020×225×315
1225×245×330
Package Dimension
mm
860×290×315
860×290×315
1000×265×370
1105×380×280
1300×285×380
Weight (Gross/Net)
kg
9/8
10/9
17/15
19/17
22/20
Water Tank 　
　
　
　
　
　
Volume
L
100
150
200
260
320
Water Connection
Inch
1/2
1/2
3/4
3/4
3/4
Size
mm
D470×980
D470×1440
D555×1255
D555×1585
D555×1820
Package Dimension
mm
555×530×1115
555×530×1575
645×625×1390
645×625×1720
645×625×1950
Weight (Gross/Net)
kg
29/25
40/35
55/47
58/52
74/65
