1. Solar Panel ( Monocrystalline & Polycrystalline PV Module)

General Description
Solar modules are composed of solar cells with high conversion efficiency,EVA sheet,soalr glass and Tedlar(TPT) back sheet compounded from fluoro-plastic and Dacron.The module adopts reliable welding technology and high-vacuum heating aluminum alloy fram and watertight terminal box.As a result,it takes on a rational structure,and has an ultraviolet aging resistance and wind resistance of up to 2400Mpa.

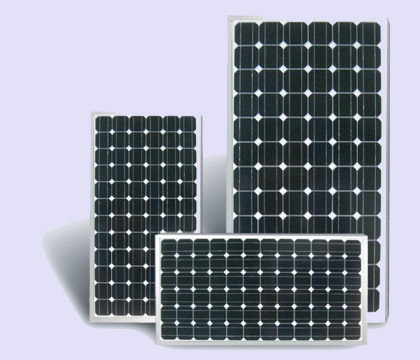

Mono-cystalline
The mono-crystalline silicon solar module with the average conversion efficiency up to 16% which can work effectively even in the light dim. Meanwhile the module can increase the electricity energy greatly with anti-reflection film and high transparent glass. Backed with protective sheet. The cell can be protected properly with safety steel glass. Meanwhile the water is prevented from entering by using EVA and TPT. On the frame there are 4-6 holes for making easier to install on all the systems structure. In the joint box are 3 diodes which can effectively reduce the system power losing from the hidden module.
Features

1) Power range: from 0.5WP to 300WP
2) Mono crystalline
3) Packing method: carton
4) Quality: first grade and good efficiency of cell
5) Warranty: 2 years product warranty and 25 years 80% of power
6) Standard test conditions: AM1.5 100mW/cm2 25
7) Tolerance: +/-5%, solar cell's efficiency can get to above 16%
8) We also can produce them according to your specific requirement.

Product Structure:Toughened Glass +EVA+ Solar Cell +TPT+ Aluminum Frame +International Standard Junction Box


Specification
Item No.
Pm(W)
Vm(V)
Im(A)
Voc(V)
Isc(A)
Size
Inner Packing Size
Outer Size
Pcs/Ctn
N.W(Kg)
G. W/ CTN(Kgs)
WM-36
3
9
0.34
10.62
0.36
240*165*25
255*180*40
520*285*220
12
0.5
8
WM-56
5
9
0.56
10.62
0.61
270*235*25
285*250*40
520*305*280
12
0.7
10.5
WM-1012
10
18
0.34
21.24
0.36
350*290*25
370*310*40
520*400*330
12
1.5
20
WM-1512
15
18
0.84
21.24
0.91
420*350*25
440*370*40
470*430*400
10
2.5
28
WM-2012
20
18
1.12
21.24
1.22
535*350*35
570*390*60
600*400*420
6
2.8
19
WM-2512
25
18
1.39
21.24
1.52
525*445*35
565*485*60
595*400*515
6
3.5
23
WM-3012
30
18
1.67
21.24
1.83
535*515*35
575*555*60
605*400*585
6
4
26
WM-3512
35
18
1.95
21.24
2.13
655*535*35
685*565*60
712*400*595
6
4.5
29
WM-4012
40
18
2.23
21.24
2.45
655*535*35
685*565*60
712*400*595
6
4.5
29
WM-5012
50
18
2.78
21.24
3.05
805*535*35
835*565*60
855*360*595
5
6.5
34.5
WM-5512
55
18
3.06
21.24
3.36
805*535*35
835*565*60
855*360*595
5
6.5
34.5
WM-6012
60
18
3.34
21.24
3.66
1000*515*35
1030*545*60
1060*360*575
5
7
37
WM-7012
70
18
3.89
21.24
4.27
1190*540*35
1220*570*60
1250*360*600
5
7.5
40
WM-7512
75
18
4.17
21.24
4.58
1190*540*35
1220*570*60
1250*360*600
5
7.5
40
WM-8012
80
18
4.45
21.24
4.88
1190*540*35
1220*570*60
1250*360*600
5
7.5
40
WM-8512
85
18
4.73
21.24
5.19
1190*540*35
1220*570*60
1250*360*600
5
7.5
40
WM-10012
100
18
5.56
42.48
6.1
1480*680*35
1520*720*130
1500*720*130
2
12
26
WM-12012
120
18
6.67
42.48
7.33
1480*680*35
1520*720*130
1500*720*130
2
12
26
WM-13012
130
18
7.23
42.48
7.9
1480*680*35
1520*720*130
1500*720*130
2
12
26
WM-15024
150
36
4.17
42.48
4.58
1580*805*50
1620*845*150
1620*845*150
2
16
35
WM-16024
160
36
4.45
42.48
4.88
1580*805*50
1620*845*150
1620*845*150
2
16
35
WM-16524
165
36
4.59
42.48
5.04
1580*805*50
1620*845*150
1620*845*150
2
16
35
WM-17024
170
36
4.73
42.48
5.19
1580*805*50
1620*845*150
1620*845*150
2
16
35
WM-17524
175
36
4.86
42.48
5.34
1580*805*50
1620*845*150
1620*845*150
2
16
35
WM-18024
180
36
5
42.48
5.5
1580*805*50
1620*845*150
1620*845*150
2
16
35
WM-23024
230
36
6.39
42.48
7.02
1950*995*50
2000*1050*100
2000*1050*100
1
25
28
WM-25024
250
36
6.95
42.48
7.64
1950*995*50
2000*1050*100
2000*1050*100
1
25
28
WM-26024
260
36
7.23
42.48
7.94
1950*995*50
2000*1050*100
2000*1050*100
1
25
28
WM-30024
300
39.5
7.6
48.58
8.21
1950*995*50
2000*1050*100
2000*1050*100
1
25
28

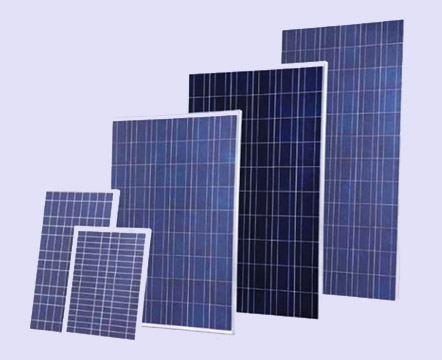

Poly-cystalline
The Poly-crystalline silicon solar module with the average conversion efficiency up to 16% which can work effectively even in the light dim. Meanwhile the module can increase the electricity energy greatly with anti-reflection film and high transparent glass. Backed with protective sheet. The cell can be protected properly with safety steel glass. Meanwhile the water is prevented from entering by using EVA and TPT. On the frame there are 4-6 holes for making easier to install on all the systems structure. In the joint box are 3 diodes which can effectively reduce the system power losing from the hidden module.
Features

1) Power range: from 0.5WP to 300WP
2) Mono crystalline
3) Packing method: carton
4) Quality: first grade and good efficiency of cell
5) Warranty: 2 years product warranty and 25 years 80% of power
6) Standard test conditions: AM1.5 100mW/cm2 25
7) Tolerance: +/-5%, solar cell's efficiency can get to above 16%
8) We also can produce them according to your specific requirement.

Product Structure:Toughened Glass +EVA+ Solar Cell +TPT+ Aluminum Frame +International Standard Junction Box


Specification
Item No.
Pm(W)
Vm(V)
Im(A)
Voc(V)
Isc(A)
Size
Inner Packing Size
Outer Size
Pcs/Ctn
N.W(Kg)
G. W/ CTN(Kgs)
WP-36
3
9
0.34
10.62
0.36
240*165*25
255*180*40
520*285*220
12
0.5
8
WP-56
5
9
0.56
10.62
0.61
270*235*25
285*250*40
520*305*280
12
0.7
10.5
WP-1012
10
18
0.34
21.24
0.36
350*290*25
370*310*40
520*400*330
12
1.5
20
WP-1512
15
18
0.84
21.24
0.91
420*350*25
440*370*40
470*430*400
10
2.5
28
WP-2012
20
18
1.12
21.24
1.22
535*350*35
570*390*60
600*400*420
6
2.8
19
WP-2512
25
18
1.39
21.24
1.52
525*445*35
565*485*60
595*400*515
6
3.5
23
WP-3012
30
18
1.67
21.24
1.83
535*515*35
575*555*60
605*400*585
6
4
26
WP-3512
35
18
1.95
21.24
2.13
655*535*35
685*565*60
712*400*595
6
4.5
29
WP-4012
40
18
2.23
21.24
2.45
655*535*35
685*565*60
712*400*595
6
4.5
29
WP-5012
50
18
2.78
21.24
3.05
805*535*35
835*565*60
855*360*595
5
6.5
34.5
WP-5512
55
18
3.06
21.24
3.36
805*535*35
835*565*60
855*360*595
5
6.5
34.5
WP-6012
60
18
3.34
21.24
3.66
1000*515*35
1030*545*60
1060*360*575
5
7
37
WP-7012
70
18
3.89
21.24
4.27
1190*540*35
1220*570*60
1250*360*600
5
7.5
40
WP-7512
75
18
4.17
21.24
4.58
1190*540*35
1220*570*60
1250*360*600
5
7.5
40
WP-8012
80
18
4.45
21.24
4.88
1190*540*35
1220*570*60
1250*360*600
5
7.5
40
WP-8512
85
18
4.73
21.24
5.19
1190*540*35
1220*570*60
1250*360*600
5
7.5
40
WP-10012
100
18
5.56
42.48
6.1
1480*680*35
1520*720*130
1500*720*130
2
12
26
WP-12012
120
18
6.67
42.48
7.33
1480*680*35
1520*720*130
1500*720*130
2
12
26
WP-13012
130
18
7.23
42.48
7.9
1480*680*35
1520*720*130
1500*720*130
2
12
26
WP-15024
150
36
4.17
42.48
4.58
1580*805*50
1620*845*150
1620*845*150
2
16
35
WP-16024
160
36
4.45
42.48
4.88
1580*805*50
1620*845*150
1620*845*150
2
16
35
WP-16524
165
36
4.59
42.48
5.04
1580*805*50
1620*845*150
1620*845*150
2
16
35
WP-17024
170
36
4.73
42.48
5.19
1580*805*50
1620*845*150
1620*845*150
2
16
35
WP-17524
175
36
4.86
42.48
5.34
1580*805*50
1620*845*150
1620*845*150
2
16
35
WP-18024
180
36
5
42.48
5.5
1580*805*50
1620*845*150
1620*845*150
2
16
35
WP-23024
230
36
6.39
42.48
7.02
1950*995*50
2000*1050*100
2000*1050*100
1
25
28
WP-25024
250
36
6.95
42.48
7.64
1950*995*50
2000*1050*100
2000*1050*100
1
25
28
WP-26024
260
36
7.23
42.48
7.94
1950*995*50
2000*1050*100
2000*1050*100
1
25
28
WP-30024
260
39.5
7.6
48.58
8.21
1950*995*50
2000*1050*100
2000*1050*100
1
25
28

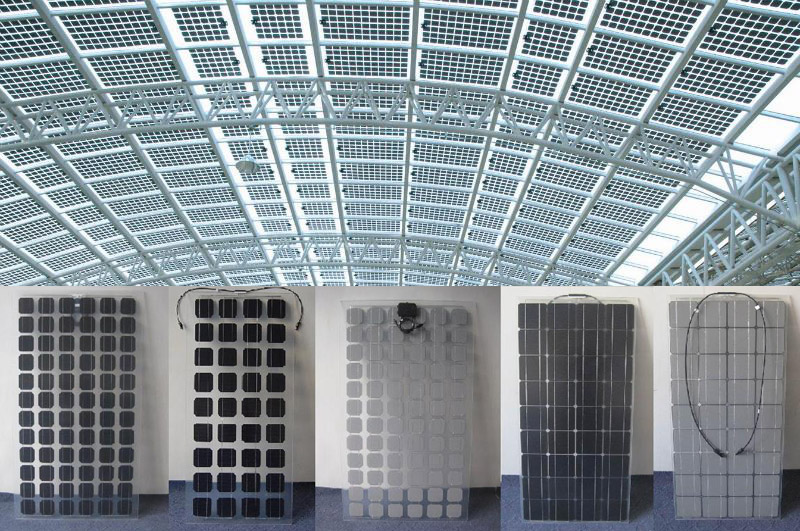

2. BIPV (Building- Integrated Photovoltaic)

Introduction:
BIPV integrates PV module into building as transparent roof to achieve the perfect goal both for beautiful building and solar power station,BIPV Frame has been developed as a universal PV module mounting system for various building installations with water proof function. The innovative and patented aluminum rails, UV resistant EPDM and rubber clamp make the perfect function for water proof which realizes the panel roof integration.

Features:
1.Place the solar cell in between of two pieces of glass, leave some space between each layer so as to let sunlight pass through.
2.PV panel & building all-in-one structure, effectively reduce constructing cost.
3.Specifications of the accessories and solar cell can be tailor-made according to customer's requests.
4.The distance between solar cells is adjustable, making the light intensity controllable.
5.The thickness of the glass scales from 3.2 to 6(mm).
6.Junction box: can be installed on the flank or the back of the glass.
7. Available 100-500W BIPV,customized size and specification are welcomed.
